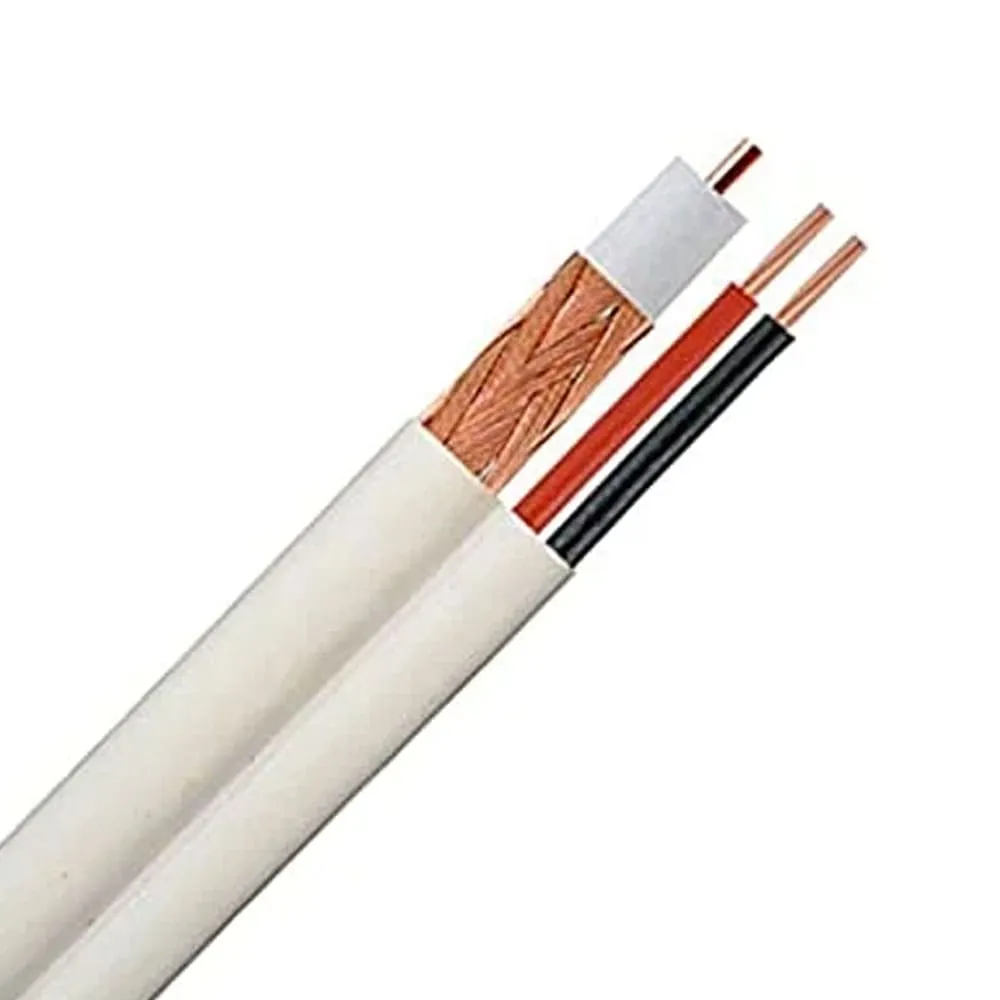

RG59/U Coax 18/2 Power Combo Cable, Split Type, 500ft in Plastic Reel
RG59/U Coax / Bare Copper / 20 AWG • 18 AWG / 2 Conductors / Copper Clad Aluminum (CCA). Copper Clad Aluminum (CCA) Braid 95%. PVC Jacket
Features:
- RG59 CCTV Cable - Combo Installer Cable

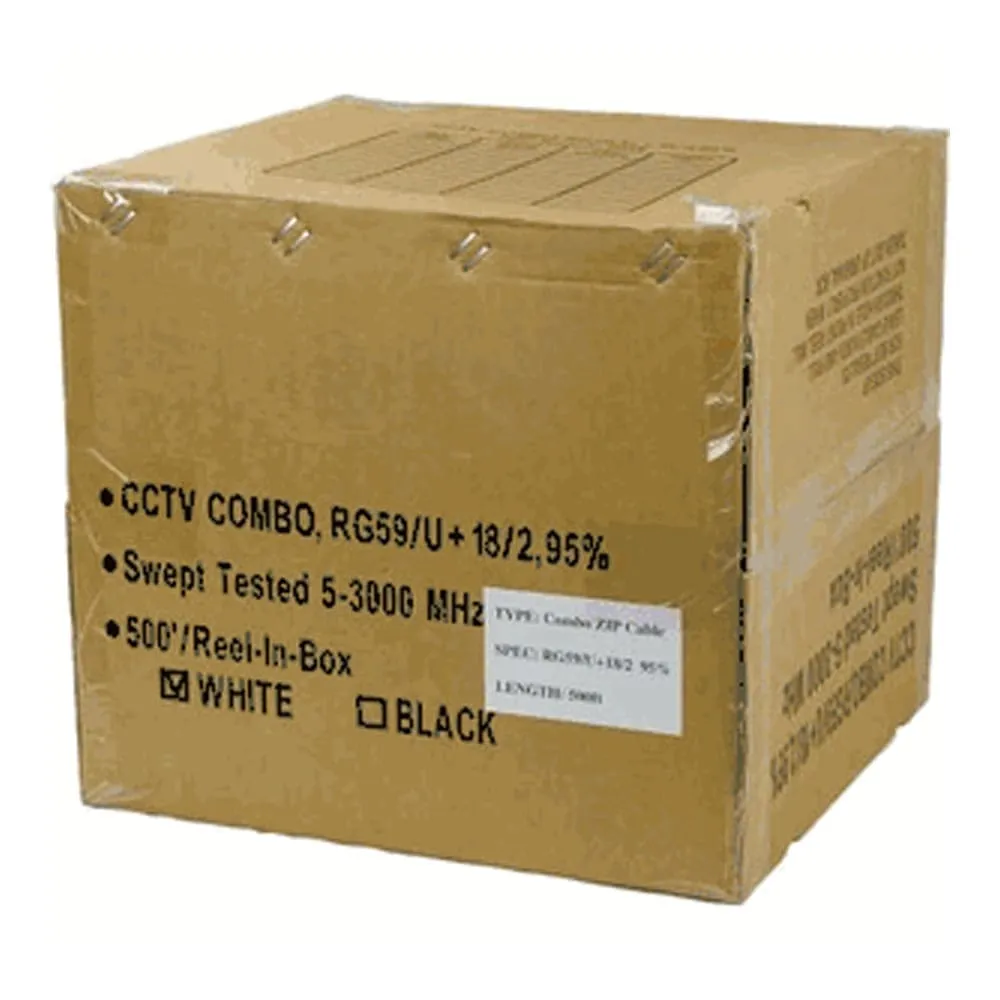

- Spool of 500 feet
- Combo Zip Cable
- Spec: RG59/U 18/2 95%
- Swept Tested: 5-3000 MHz
- Color: White
RG59/U Coaxial Component
| CONDUCTOR | |
|---|---|
| Material | Bare copper |
| Size | 20 AWG |
| Construction | Solid |
| INSULATION | |
| Material | Foamed PE |
| O.D. | .146" |
| Color cord | White |
| SHIELDS | |
| Braid | 95% coverage copper clad aluminum |
| JACKET | |
| Material | PVC |
| O.D. | .236" nom |
| Color | Black or White |
Two 18 AWG Conductors
| CONDUCTOR | |
|---|---|
| Material | copper clad aluminum |
| Size | 18 AWG |
| Stranding | 7/.015 |
| INSULATION | |
| Material | HD-PE |
| O.D. | .069" |
| Color cord | black, Red |
| JACKET | |
| Material | PVC, PVC is extruded over coax and pair with web attached |
| O.D. | .196 × .69 |
| OUT JACKET | |
| Material | PVC |
| O.D. | .236 × .472 |
| Color | Black or White |
| Markings | CCTV COMBO RG59/U 18/2 CL2 BLACK（or WHT) 95% COPPER E348365 Lot#XXXXXXXXX 002FT (004FT….006FT).. 500FT |
| ELECTRICAL PROPERTIES | |
| Temperature | −20°C to 75°C |
| Capacitance | 15.8 pF/Ft. nom |
| Impedance | 75 Ohms nom. |
| Velocity of Propagation | 82% nom. |
| Dielectric Strength | 500 VRMS min. |
| Max Attenuation | 55 MHz -> 1.84 Db/100ft 240MHz -> 3.57Db/100ft 400MHz -> 4.66Db/100ft 600MHz -> 5.75 Db/100ft 800MHz -> 6.71 Db/100ft |
| PUT=UPS | 500ft / Reelex CTN |
